12V 300A Industrial Rectifier for Electroplating & Electrolysis

全カテゴリー

12V 300A Industrial Rectifier for Electroplating & Electrolysis

ブランド名:	Xingtongli
モデル番号:	GKD12-300CVC
MOQ:	1pcs
価格:	490-660$/unit
パッケージの詳細:	strong plywood standard exporting package
支払条件:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

製品の説明

Place of Origin:

China

CE ISO9001

Supply Ability:

200 Set/Sets per Month

ハイライト:

12V 300A electroplating rectifier

industrial electrolysis power supply

heavy-duty electroplating rectifier 300A

製品の説明

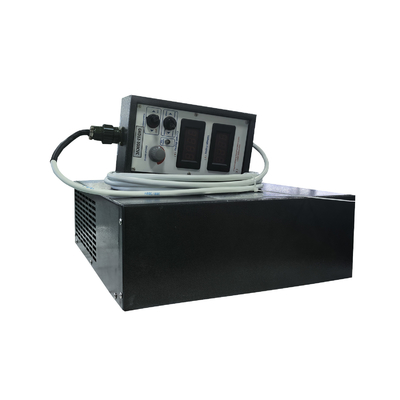

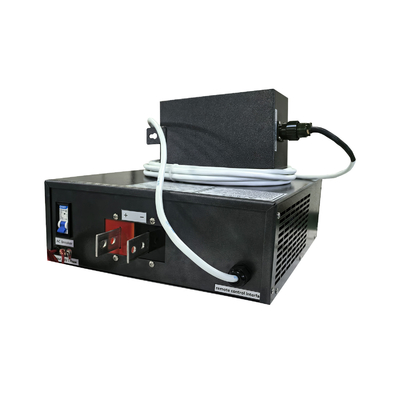

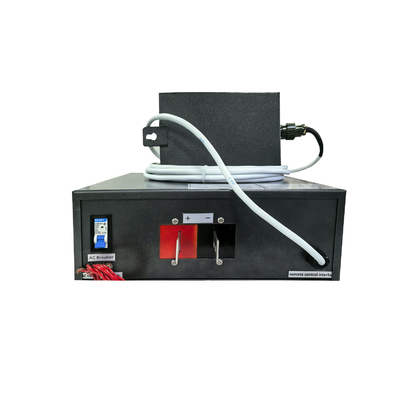

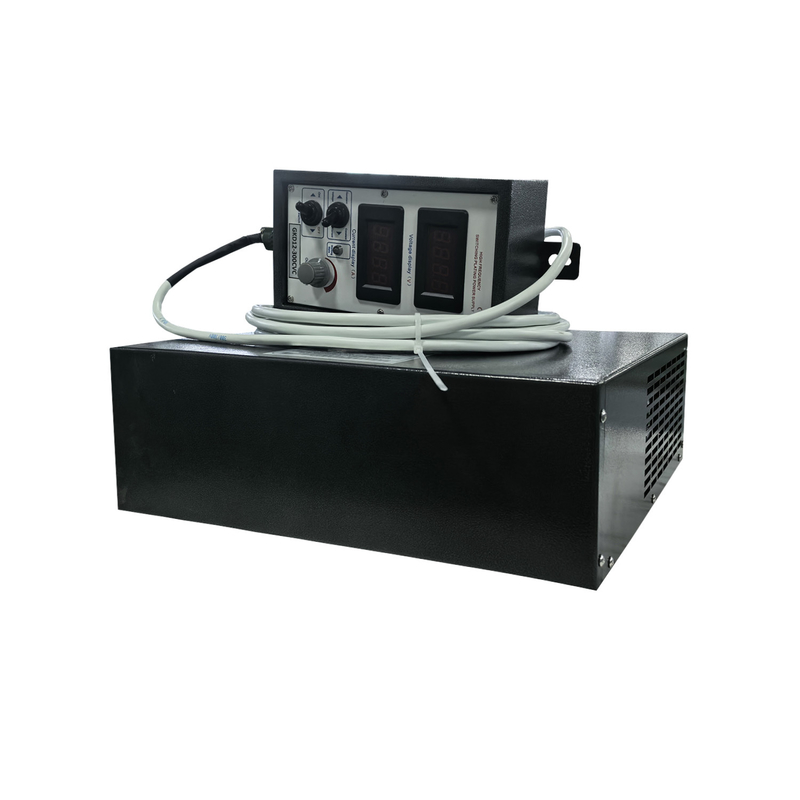

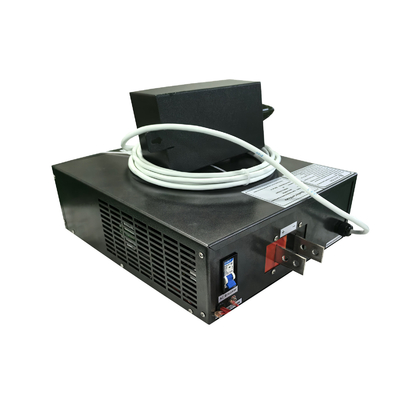

12V 300A Industrial Rectifier for Electroplating & Electrolysis

This 12V 300A rectifier delivers stable and efficient DC output, designed with advanced IGBT technology for superior performance. Suitable for electroplating, electrolysis, and other industrial applications requiring dependable power. Features durable construction and excellent heat dissipation for continuous operation.

Technical Specifications

Input Power: Single-phase 220V AC ±15%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-300A continuously adjustable
- Power: Max. 3.6kW (12V × 300A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥90% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
