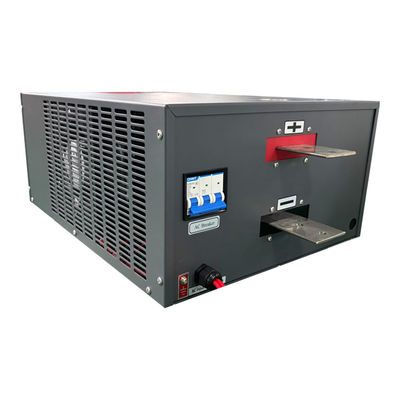

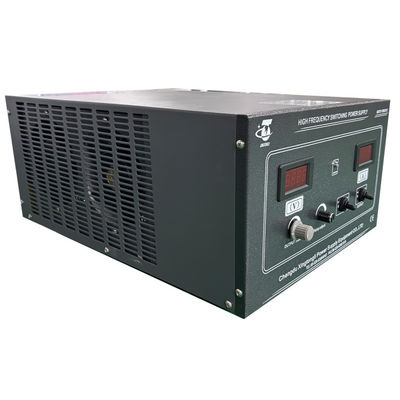

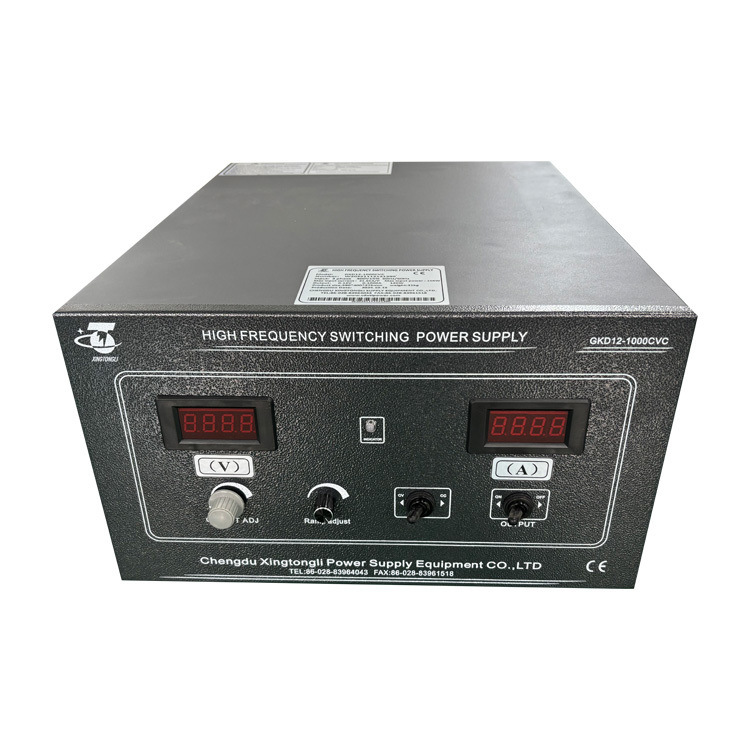

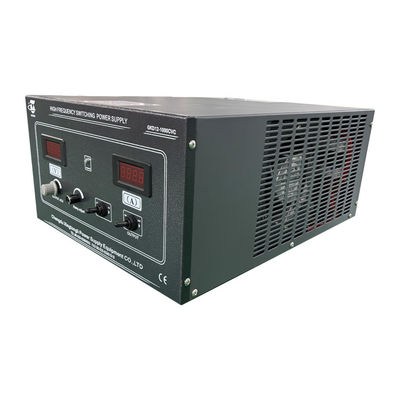

12V 1000A Hard Chrome Plating Rectifier, 400V AC Input

ブランド名:	Xingtongli
モデル番号:	GKD12-1000CVC
MOQ:	1pcs
価格:	960-1250$/unit
パッケージの詳細:	強力な合板標準エクスポートパッケージ
支払条件:	L/C、D/A、D/P、T/T、Western Union、MoneyGram

製品の説明

起源の場所:

CE ISO9001

供給の能力:

月額200セット/セット

ハイライト:

12V 1000A electroplating rectifier

hard chrome plating power supply

400V AC input rectifier

製品の説明

12V 1000A Hard Chrome Plating Rectifier, 400V AC Input

This 12V 1000A DC rectifier is designed for hard chrome plating and other surface finishing processes that require a stable, high-current power supply.
It converts 400V three-phase AC input into a smooth, adjustable DC output, ensuring consistent plating quality and uniform chrome thickness.

With precise voltage and current control, it helps achieve excellent hardness, wear resistance, and corrosion protection on plated parts.

Built with an IGBT module and efficient cooling system, it provides high reliability, low ripple, and long service life, making it a preferred choice for industrial chrome plating lines.

Technical Specifications

Input Power: Three-phase 400V AC ±5%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-1000A continuously adjustable
- Power: Max.12KW (12V ×1000A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
