商品の詳細

家 > 製品 >

電気めっきの電源

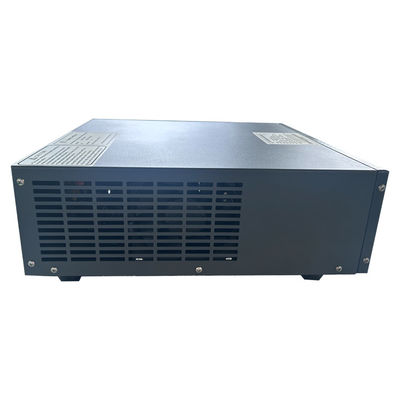

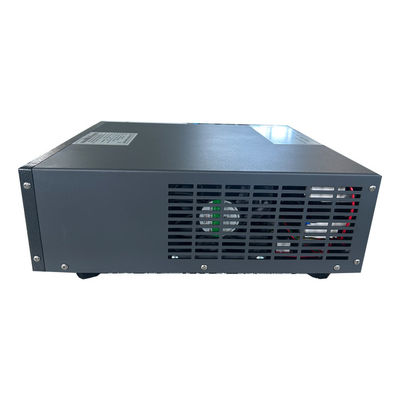

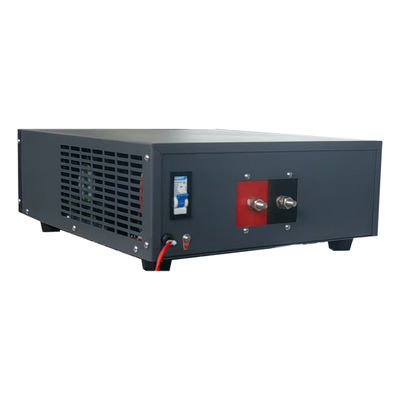

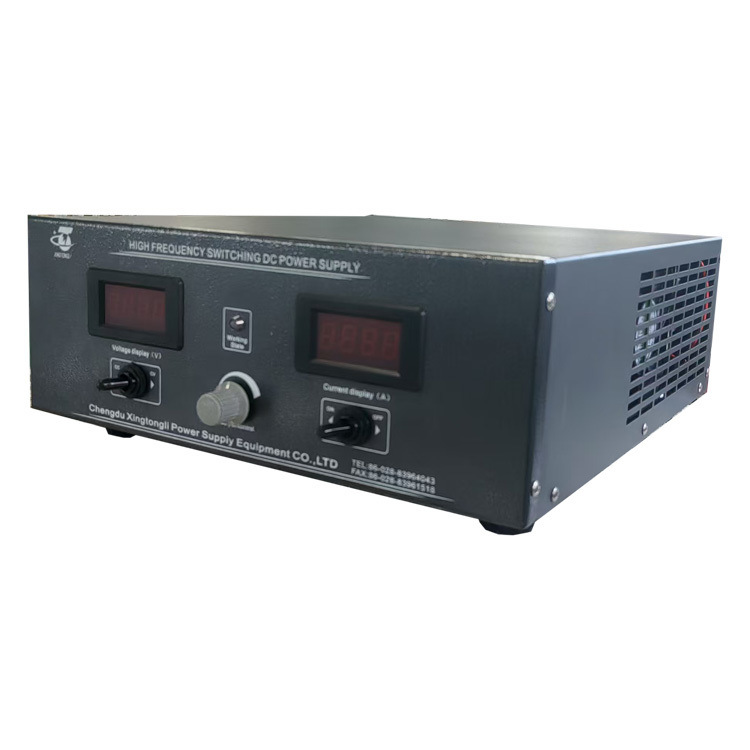

12V 100A DC Rectifier, 220V AC Single-Phase Input, Stable Electroplating & Hydrogen Generator Power Supply

全カテゴリー

高圧DC電源

私達に連絡しなさい

Mrs. Una Wang

Unawang@cdxtlpower.com

+8615828663127

今連絡してください

12V 100A DC Rectifier, 220V AC Single-Phase Input, Stable Electroplating & Hydrogen Generator Power Supply

ブランド名:	Xingtongli
モデル番号:	GKD12-100CVC
MOQ:	1pcs
価格:	400-550$/unit
パッケージの詳細:	強力な合板標準エクスポートパッケージ
支払条件:	L/C、D/A、D/P、T/T、Western Union、MoneyGram

製品の説明

起源の場所:

CE ISO9001

供給の能力:

月額200セット/セット

製品の説明

12V 100A DC Rectifier, 220V AC Single-Phase Input, Stable Electroplating & Hydrogen Generator Power Supply

This 12V 100A DC rectifier is designed for applications requiring stable and reliable DC power, such as electroplating, hydrogen generators, and other industrial processes.
It converts 220V AC single-phase input into smooth 12V DC output, with adjustable current up to 100A.
Compact and efficient, this rectifier ensures consistent current, low ripple, and long service life, making it ideal for precision electrochemical processes.

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-100A continuously adjustable
- Power: Max.1.2KW (12V ×100A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.

電気めっきのためのdcの整流器

電気めっきの整流器

めっきの電源

商品の詳細

家 > 製品 >

電気めっきの電源

12V 100A DC Rectifier, 220V AC Single-Phase Input, Stable Electroplating & Hydrogen Generator Power Supply

全カテゴリー

12V 100A DC Rectifier, 220V AC Single-Phase Input, Stable Electroplating & Hydrogen Generator Power Supply

ブランド名:	Xingtongli
モデル番号:	GKD12-100CVC
MOQ:	1pcs
価格:	400-550$/unit
パッケージの詳細:	強力な合板標準エクスポートパッケージ
支払条件:	L/C、D/A、D/P、T/T、Western Union、MoneyGram

詳細情報

製品の説明

詳細情報

起源の場所:

中国

ブランド名:

Xingtongli

証明:

CE ISO9001

モデル番号:

GKD12-100CVC

最小注文数量:

1pcs

価格:

400-550$/unit

パッケージの詳細:

強力な合板標準エクスポートパッケージ

受渡し時間:

5〜30営業日

支払条件:

L/C、D/A、D/P、T/T、Western Union、MoneyGram

供給の能力:

月額200セット/セット

製品の説明

12V 100A DC Rectifier, 220V AC Single-Phase Input, Stable Electroplating & Hydrogen Generator Power Supply

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-100A continuously adjustable
- Power: Max.1.2KW (12V ×100A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
