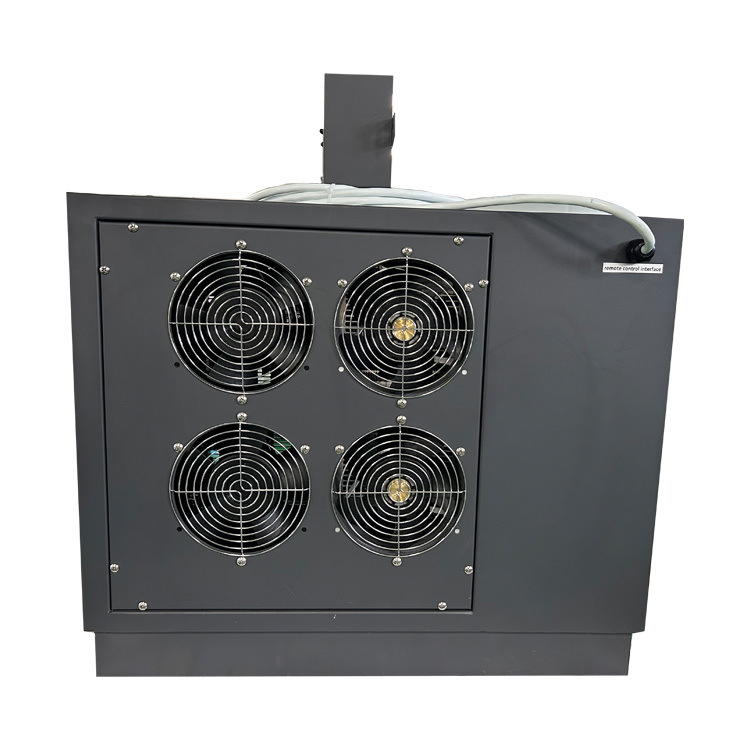

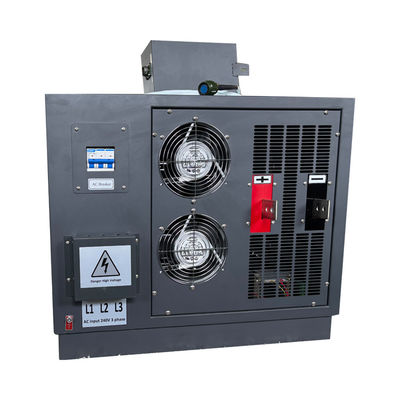

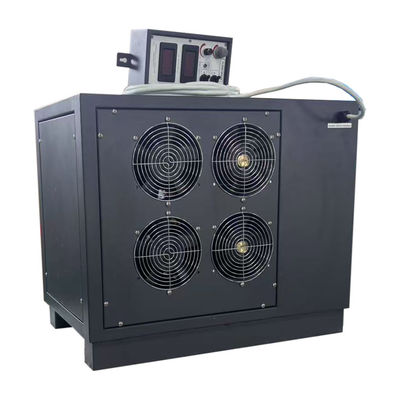

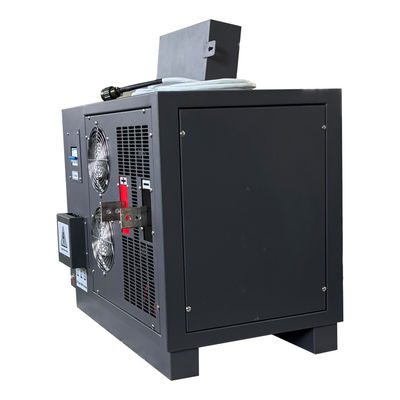

High Current 30V 500A DC Power Supply for Metal Finishing

ブランド名:	Xingtongli
モデル番号:	GKD30-500CVC
MOQ:	1pcs
価格:	1050-1400$/unit
パッケージの詳細:	強力な合板標準エクスポートパッケージ
支払条件:	L/C、D/A、D/P、T/T、Western Union、MoneyGram

製品の説明

起源の場所:

CE ISO9001

供給の能力:

月額200セット/セット

ハイライト:

30V 500A DC power supply

high current electroplating power supply

metal finishing DC power supply

製品の説明

High Current 30V 500A DC Power Supply for Metal Finishing

The 30V 500A rectifier power supply delivers stable and precise DC output, designed for electroplating, anodizing, electrolysis, and other industrial applications. With adjustable voltage and current, high efficiency, and reliable performance, it ensures consistent plating quality and supports continuous production in large-scale operations.

Technical Specifications

Input Power: three-phase 240V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-30V continuously adjustable
- Current: DC 0-500A continuously adjustable
- Power: Max.15KW (30V ×500A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
