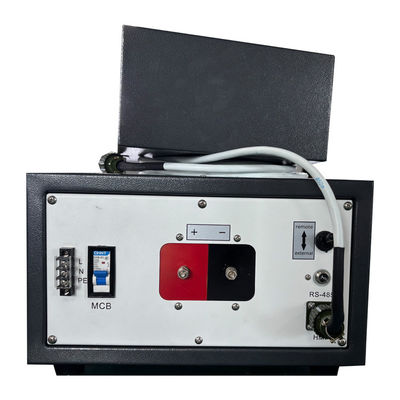

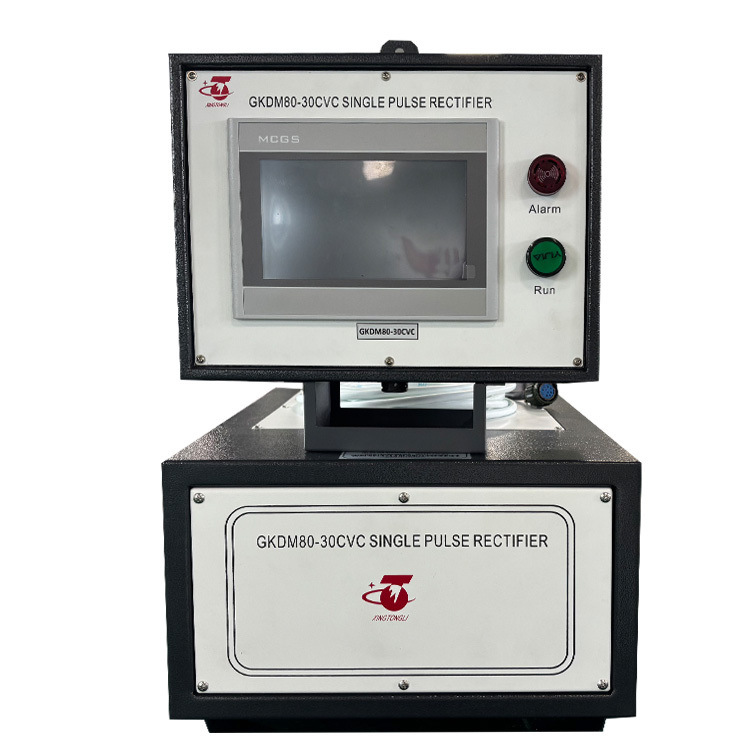

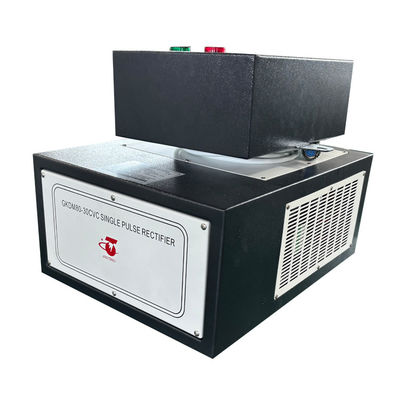

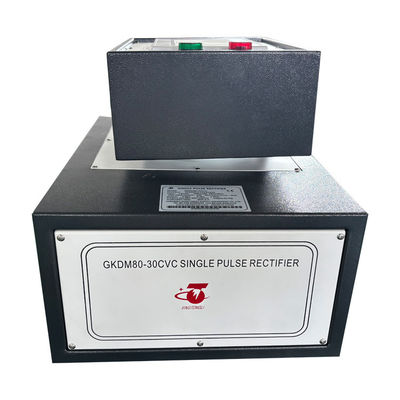

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

ブランド名:	Xingtongli
モデル番号:	GKDM80-30CVC
MOQ:	1pcs
価格:	5500-6500$/unit
パッケージの詳細:	強力な合板標準エクスポートパッケージ
支払条件:	L/C、D/A、D/P、T/T、Western Union、MoneyGram

製品の説明

起源の場所:

CE ISO9001

供給の能力:

月額200セット/セット

製品の説明

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

High-performance 80V 30A single pulse power supply specially designed for jewelry electroplating. Provides stable and precise DC output, ensuring smooth plating, bright finishes, and consistent quality for small and delicate items. Compact, easy to operate, ideal for workshops and small-scale production.

Technical Specifications

Input Power: single-phase 240V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-80V continuously adjustable
- Current: DC 0-30A continuously adjustable
- Power: Max.2.4KW (80V ×30A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥89% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；remote box control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.

商品の詳細

家 > 製品 >

電気めっきの電源

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

全カテゴリー

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

ブランド名:	Xingtongli
モデル番号:	GKDM80-30CVC
MOQ:	1pcs
価格:	5500-6500$/unit
パッケージの詳細:	強力な合板標準エクスポートパッケージ
支払条件:	L/C、D/A、D/P、T/T、Western Union、MoneyGram

詳細情報

製品の説明

詳細情報

起源の場所:

中国

ブランド名:

Xingtongli

証明:

CE ISO9001

モデル番号:

GKDM80-30CVC

最小注文数量:

1pcs

価格:

5500-6500$/unit

パッケージの詳細:

強力な合板標準エクスポートパッケージ

受渡し時間:

5〜30営業日

支払条件:

L/C、D/A、D/P、T/T、Western Union、MoneyGram

供給の能力:

月額200セット/セット

製品の説明

80V 30A High-Precision Single Pulse Rectifier for Jewelry Electroplating

Technical Specifications

Input Power: single-phase 240V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-80V continuously adjustable
- Current: DC 0-30A continuously adjustable
- Power: Max.2.4KW (80V ×30A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥89% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；remote box control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
