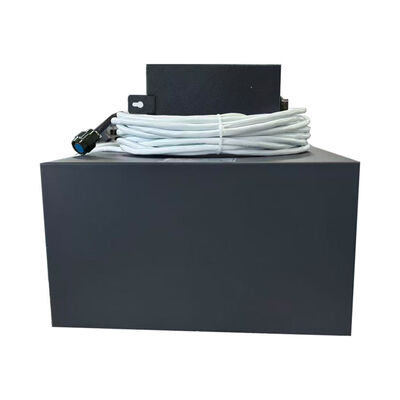

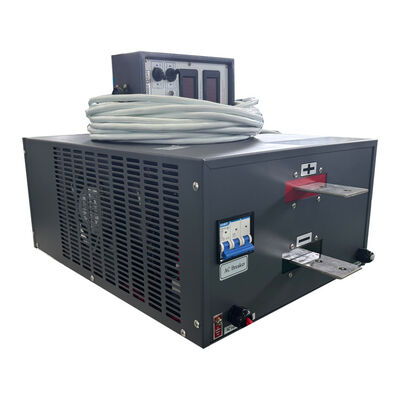

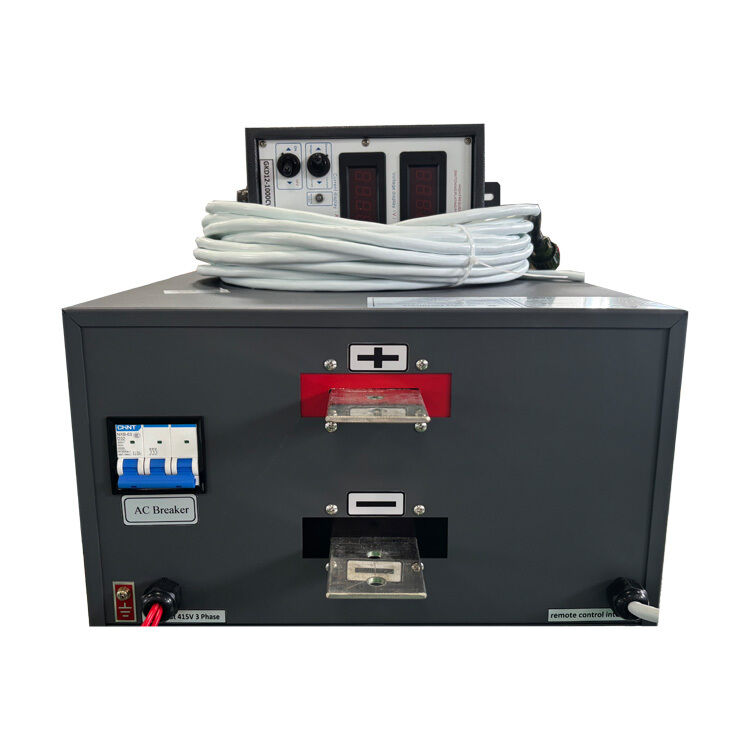

12V 1000A IGBT Plating Rectifier Industrial High-Current DC Power Supply 415V 3-Phase Input

ブランド名:	Xingtongli
モデル番号:	GKD12-1000CVC
MOQ:	1個
価格:	970-1290$/unit
パッケージの詳細:	強力な合板標準エクスポートパッケージ
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

製品の説明

起源の場所:

CE ISO9001

供給の能力:

月額200セット/セット

ハイライト:

12V 1000A IGBT plating rectifier

industrial high-current DC power supply

3-phase electroplating power supply

製品の説明

12V 1000A IGBT Plating Rectifier Industrial High-Current DC Power Supply 415V 3-Phase Input

This 12V 1000A industrial rectifier uses advanced IGBT technology to provide stable, low-ripple DC output for electroplating, electroforming, electrocoagulation, and water treatment applications. It supports 415V three-phase input and is designed for continuous heavy-duty operation with full protection features such as over-voltage, over-current, over-temperature, and grounding protection. High efficiency and fast response ensure reliable long-term performance.

Technical Specifications

Input Power: three-phase 415V AC ±5%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-1000A continuously adjustable
- Power: Max.12KW (12V *1000A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
