6V 300A Pure DC Power Supply for Jewelry Plating with 380V AC Input

6V 300A Pure DC Power Supply for Jewelry Plating with 380V AC Input

ブランド名: Xingtongli
モデル番号: GKD6-300CVC
MOQ: 1個
価格: 600-700$/unit
パッケージの詳細: 強力な合板標準エクスポートパッケージ
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
詳細情報
起源の場所:
中国
証明:
CE ISO9001
供給の能力:
月額200セット/セット
ハイライト:

6V 300A electroplating power supply

,

pure DC jewelry plating power supply

,

380V AC input power supply

製品の説明

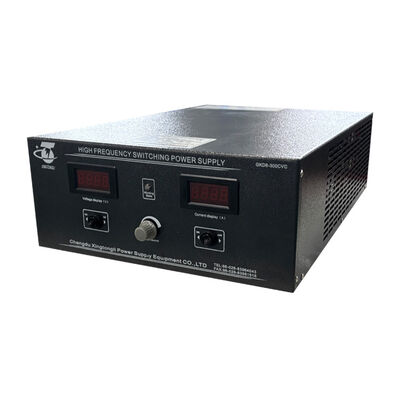

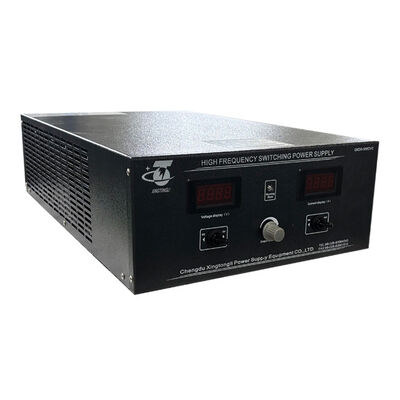

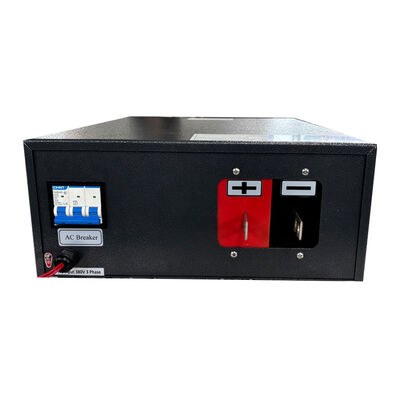

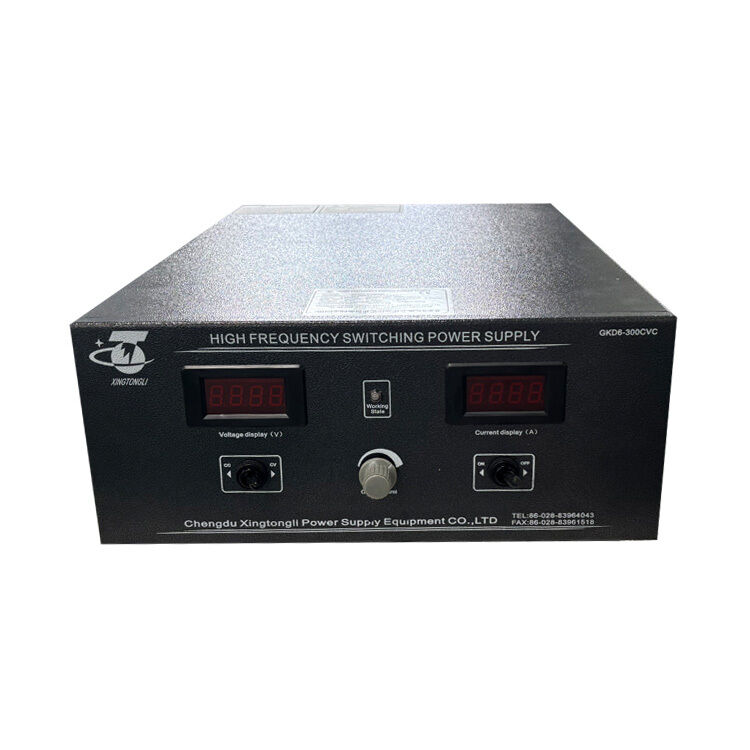

6V 300A Pure DC Power Supply for Jewelry Plating with 380V AC Input

This 6V 300A pure DC power supply is specially designed for jewelry plating, delivering stable, low-ripple DC output to ensure uniform and high-quality coating of gold, silver, and other precious metals. With 380V three-phase input, it features IGBT-based technology for high efficiency and fast response. Adjustable current and voltage settings, combined with built-in protections including over-voltage, over-current, over-temperature, short-circuit, and grounding protection, make it safe and reliable for continuous plating operations.


Technical Specifications
  • Input Power: three-phase 380V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-6V continuously adjustable
    • Current: DC 0-300A continuously adjustable
    • Power: Max.1.8KW (6V *300A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol);local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.
  • 6V 300A Pure DC Power Supply for Jewelry Plating with 380V AC Input 0
  • 6V 300A Pure DC Power Supply for Jewelry Plating with 380V AC Input 1
