48V 100A Programmable DC Power Supply for Battery Charging High-Precision Industrial Charger

全カテゴリー

高圧DC電源

私達に連絡しなさい

Mrs. Una Wang

Unawang@cdxtlpower.com

+8615828663127

今連絡してください

48V 100A Programmable DC Power Supply for Battery Charging High-Precision Industrial Charger

ブランド名:	Xingtongli
モデル番号:	GKD48-100CVC
MOQ:	1個
価格:	1678-2275$/unit
パッケージの詳細:	強力な合板標準エクスポートパッケージ
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

製品の説明

起源の場所:

CE ISO9001

供給の能力:

月額200セット/セット

製品の説明

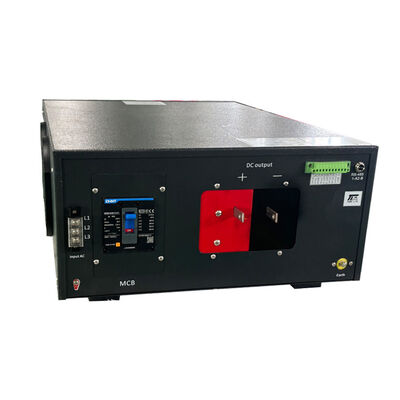

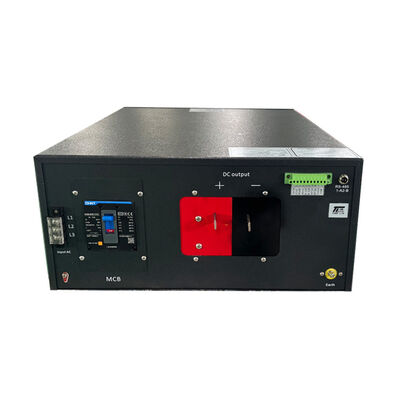

48V 100A Programmable DC Power Supply for Battery Charging High-Precision Industrial Charger

This 48V 100A programmable DC power supply is designed for high-efficiency and stable battery charging applications. It supports both constant current (CC) and constant voltage (CV) modes, offering precise control and excellent reliability. With intelligent programmable functions, digital display, and multiple protection features, it is ideal for lithium batteries, lead-acid batteries, energy storage systems, laboratory use, and industrial charging solutions.

Technical Specifications

Input Power: three-phase 480V AC ±5%, 50/60Hz
Output Capability:
- Voltage: DC 0-48V continuously adjustable
- Current: DC 0-100A continuously adjustable
- Power: Max.4.8KW (48V ×100A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.

商品の詳細

家 > 製品 >

電気めっきの電源

48V 100A Programmable DC Power Supply for Battery Charging High-Precision Industrial Charger

全カテゴリー

48V 100A Programmable DC Power Supply for Battery Charging High-Precision Industrial Charger

ブランド名:	Xingtongli
モデル番号:	GKD48-100CVC
MOQ:	1個
価格:	1678-2275$/unit
パッケージの詳細:	強力な合板標準エクスポートパッケージ
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

詳細情報

製品の説明

詳細情報

起源の場所:

中国

ブランド名:

Xingtongli

証明:

CE ISO9001

モデル番号:

GKD48-100CVC

最小注文数量:

1個

価格:

1678-2275$/unit

パッケージの詳細:

強力な合板標準エクスポートパッケージ

受渡し時間:

5〜30営業日

支払条件:

L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

供給の能力:

月額200セット/セット

製品の説明

48V 100A Programmable DC Power Supply for Battery Charging High-Precision Industrial Charger

Technical Specifications

Input Power: three-phase 480V AC ±5%, 50/60Hz
Output Capability:
- Voltage: DC 0-48V continuously adjustable
- Current: DC 0-100A continuously adjustable
- Power: Max.4.8KW (48V ×100A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
