18V 300A Polarity Reversing Rectifier with Ampere Hour Meter 380V 3 Phase Input DC Power Supply for Electroplating

ブランド名:	Xingtongli
モデル番号:	GKDH18-300CVC
MOQ:	1個
価格:	1500-1700$/unit
パッケージの詳細:	強力な合板の標準輸出パッケージ
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

製品の説明

起源の場所:

CE ISO9001

供給の能力:

月あたり 200 セット/セット

製品の説明

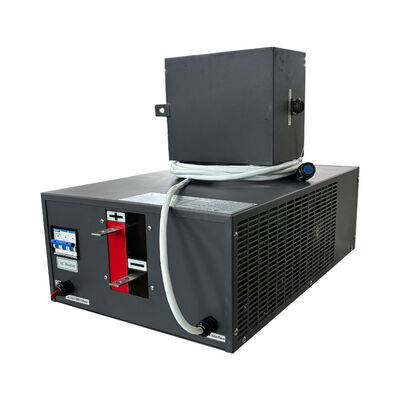

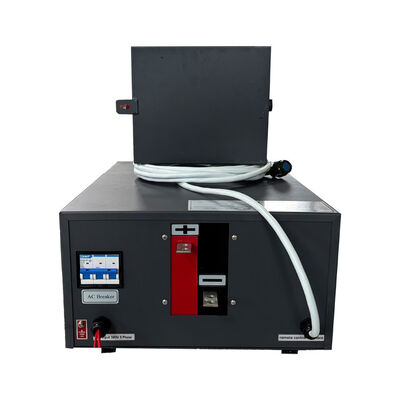

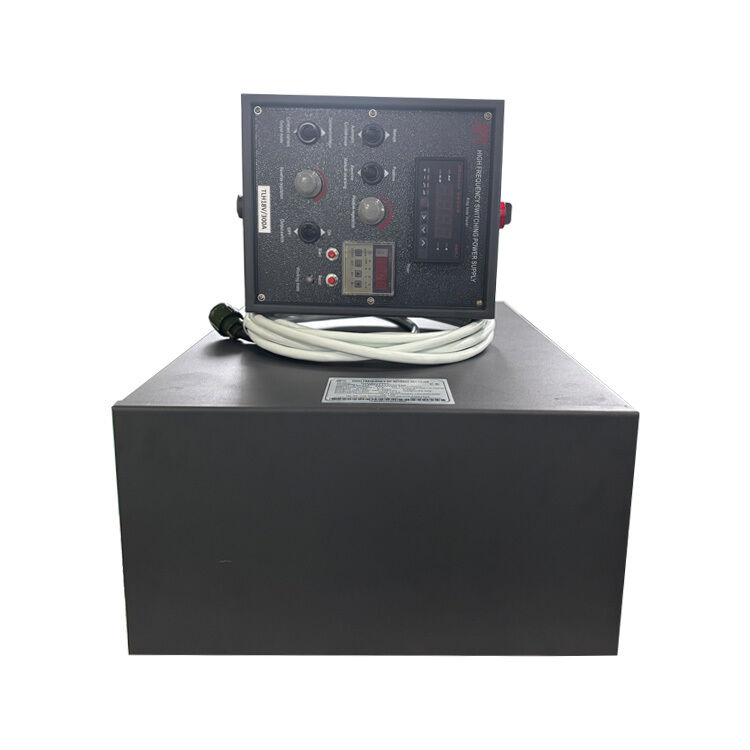

18V 300A Reversible Rectifier with Ampere Hour Meter 380V 3 Phase Input DC Power Supply for Electroplating

This 18V 300A reversible rectifier is designed for electroplating applications, featuring a built-in ampere hour meter for precise process control. With 380V three-phase input, it ensures stable performance and high efficiency. The reversible polarity function makes it ideal for processes such as plating and surface treatment, providing reliable and consistent output.

Technical Specifications

Input Power: three-phase 380V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-18V continuously adjustable
- Current: DC 0-300A continuously adjustable
- Power: Max.5.4KW (18V *300A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection

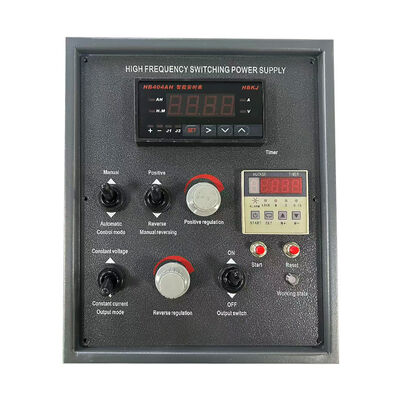

Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
