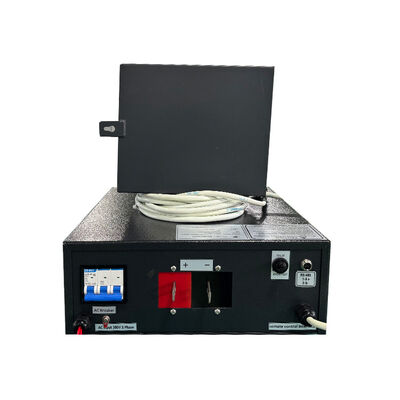

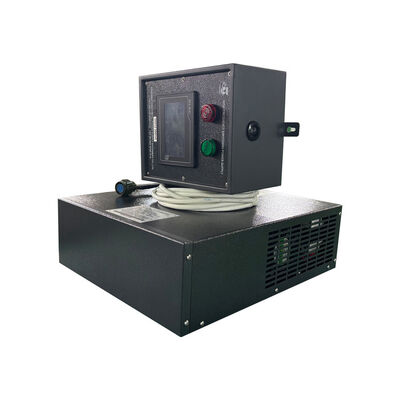

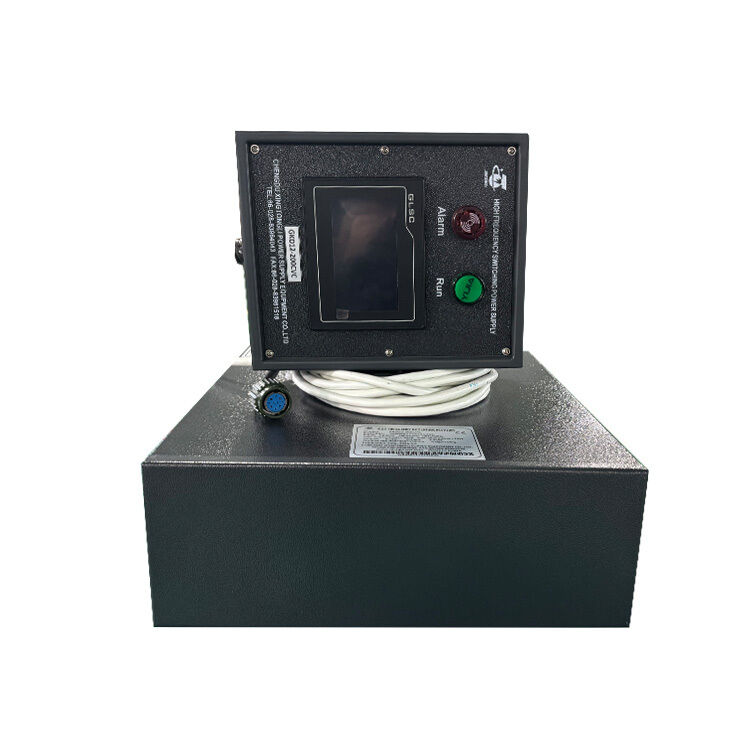

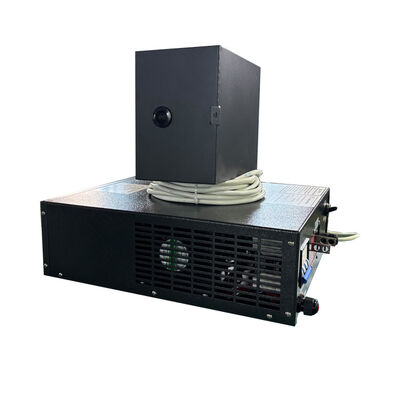

12V 200A Electroplating Rectifier 380V Three Phase CPU HMI DC Power Supply

全カテゴリー

高圧DC電源

私達に連絡しなさい

Mrs. Una Wang

Unawang@cdxtlpower.com

+8615828663127

今連絡してください

12V 200A Electroplating Rectifier 380V Three Phase CPU HMI DC Power Supply

ブランド名:	Xingtongli
モデル番号:	GKD12-200CVC
MOQ:	1個
価格:	850-1000$/unit
パッケージの詳細:	強力な合板の標準輸出パッケージ
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

製品の説明

起源の場所:

CE ISO9001

供給の能力:

月あたり 200 セット/セット

ハイライト:

12V 200A electroplating rectifier

three phase DC power supply

HMI electroplating power supply

製品の説明

12V 200A Electroplating Rectifier 380V Three Phase CPU HMI DC Power Supply

This 12V 200A electroplating rectifier is designed for industrial electroplating applications, featuring 380V three-phase input and advanced CPU + HMI intelligent control system. The rectifier provides stable DC output, precise current regulation, and user-friendly operation, making it suitable for chrome plating, nickel plating, zinc plating, copper plating, anodizing, and other surface treatment processes.

Technical Specifications

Input Power: three-phase 380V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-200A continuously adjustable
- Power: Max.2.4KW (12V *200A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
