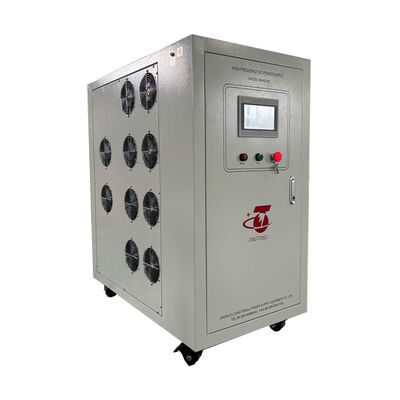

20V 3000A High Precision Conductor Heating Power Supply 400V Three Phase PLC Touch Screen RS485 DC Rectifier

ブランド名:	Xingtongli
モデル番号:	GKD15-1500CVC
MOQ:	1個
価格:	2100-2300$/unit
パッケージの詳細:	強力な合板の標準輸出パッケージ
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

製品の説明

起源の場所:

CE ISO9001

供給の能力:

月あたり 200 セット/セット

ハイライト:

20V 3000A high voltage DC power supply

Three phase PLC touch screen rectifier

RS485 conductor heating power supply

製品の説明

20V 3000A High Precision Conductor Heating Power Supply 400V Three Phase PLC Touch Screen RS485 DC Rectifier

This 20V 3000A high precision power supply is designed for conductor heating applications, featuring 400V three-phase input and advanced PLC + touch screen control system. With RS485 communication, it enables easy integration into automated systems. The unit delivers extremely stable DC output with RMS ripple ≤0.5%, current stability 0.5%, and output adjustment accuracy of 0.1A, ensuring precise and reliable heating performance for industrial processes.

Technical Specifications

Input Power: three-phase 400V AC ±5%, 50/60Hz
Output Capability:
- Voltage: DC 0-20V continuously adjustable
- Current: DC 0-3000A continuously adjustable
- Power: Max 60KW (20V *3000A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
