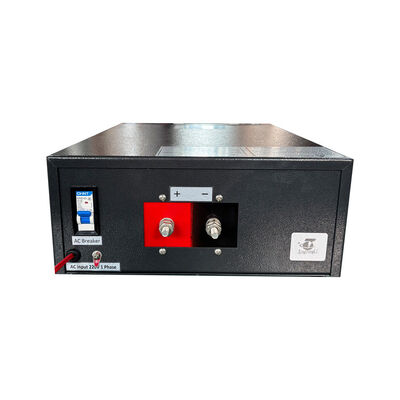

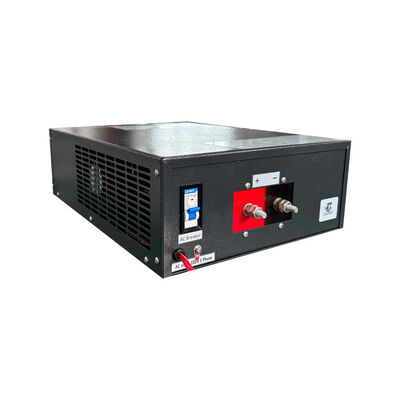

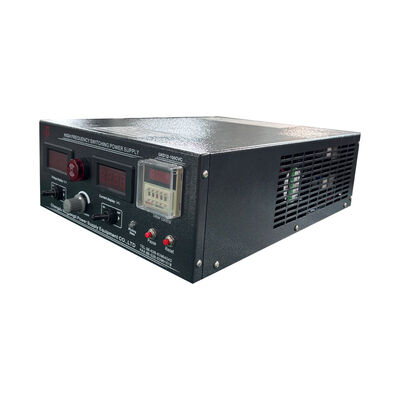

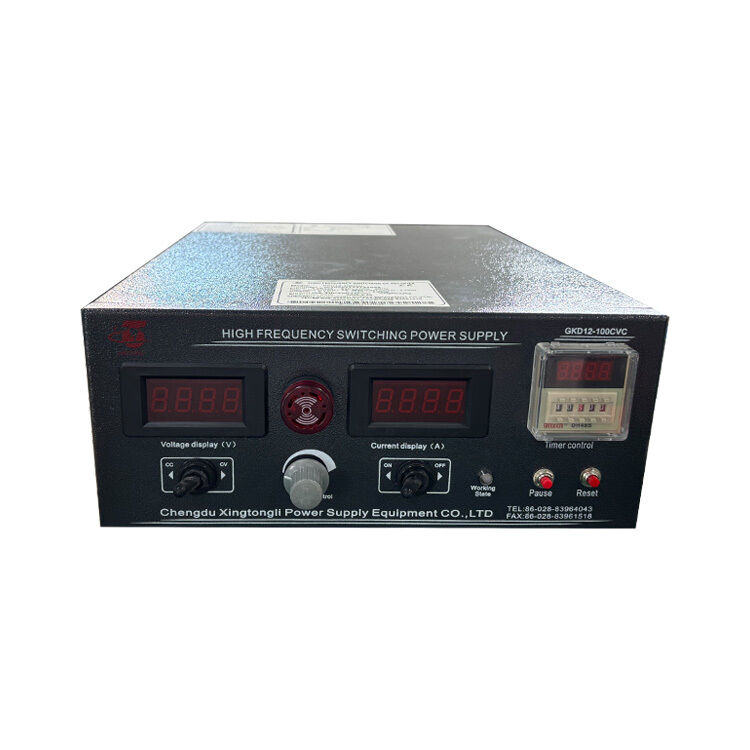

12V 100A DC Rectifier Power Supply for Tin Plating with Timer Relay Function 220V Single Phase Input Stable Pure DC Output

ブランド名:	Xingtongli
モデル番号:	GKD12-100CVC
MOQ:	1個
価格:	600-800$/unit
パッケージの詳細:	強力な合板の標準輸出パッケージ
支払条件:	L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム

製品の説明

起源の場所:

CE ISO9001

供給の能力:

月あたり 200 セット/セット

ハイライト:

12V 100A DC rectifier power supply

tin plating power supply with timer relay

220V single phase electroplating power supply

製品の説明

12V 100A DC Rectifier Power Supply for Tin Plating with Timer Relay Function 220V Single Phase Input Stable Pure DC Output

This 12V 100A pure DC power supply is specially designed for tin plating applications, delivering stable and reliable output for consistent coating quality. Equipped with a built-in time relay control, it allows precise timing operation to improve production efficiency and process control. Powered by a 220V single-phase input, this rectifier ensures safe and efficient performance with smooth DC output, making it suitable for small to medium-scale electroplating lines and laboratory use.

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-100A continuously adjustable
- Power: Max 1.2KW (12V *100A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
